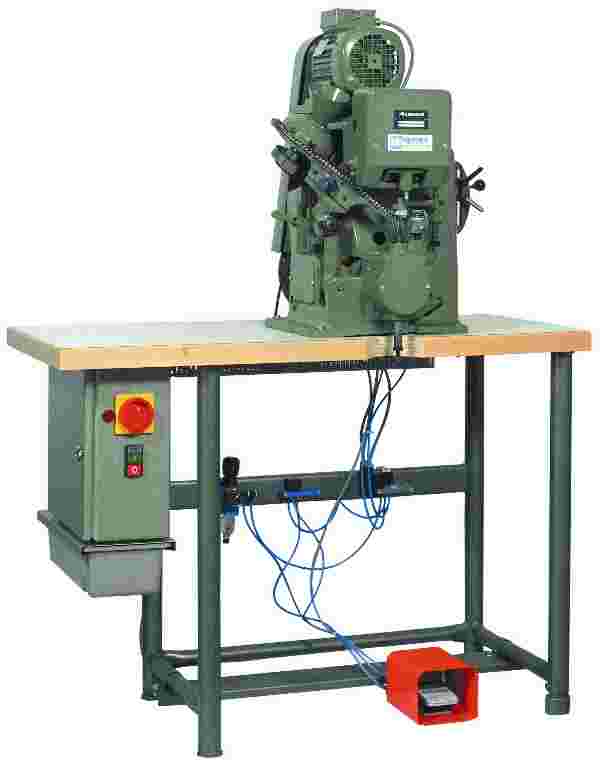

ALBEKO 127P,
Automatische Loch- und Blindöseneinsetzmaschine

Das Öseneinsetzen erfolgt am fertig gesteppten Schaft. Der Ösenabstand ist durch neue Schnellverstellungseinrichtung leicht von 9,5 – 18 mm verstellbar.
Automatic Hole Punching and Eyeletting Machine for Blind Eyelets.
The eyelets are inserted on the stitched upper. The distance can be adjusted from 9,5 – 18 mm by a new quick action adjustment, if desired from 15 – 23 mm.
Capacity: approx. 1000 pairs / 8 hours

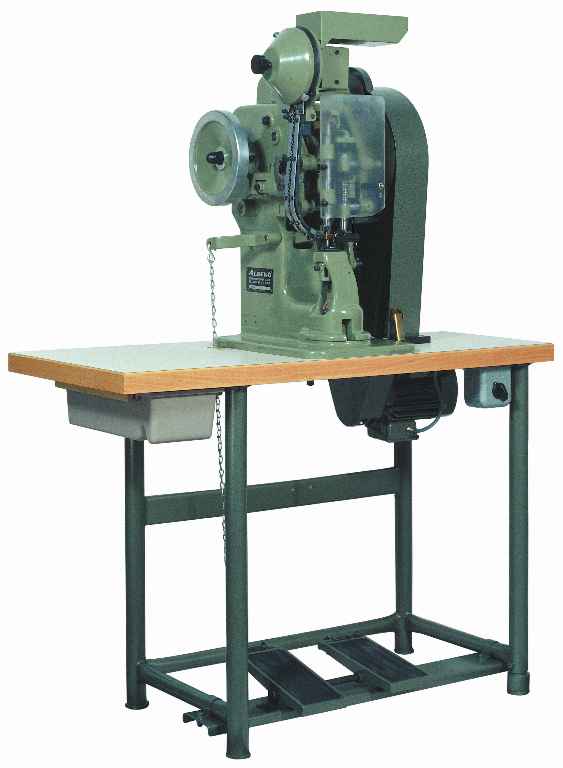

ALBEKO 131HSO4A-P
Automatische Loch- und Öseneinsetzmaschine für Oberösen
Mit verstellbarem Ösenabstand von 9 – 30 mm und mit elektro-pneumatischer Steuerung für offene und geschlossene Schäfte.  Das Zuführen, Einsetzen und Vernieten der Ösen, sowie das Lochen und der Vorschub der Schäfte erfolgen automatisch. Ösenabstand stufenlos verstellbar von 9 – 30 mm, mit verstellbarem Kanal für Ösen mit einem Schaftdurchmesser von 4 – 9 mm.

Automatic Hole Punching and Eyeletting Machine. Adjustable eyelet distance of 9 – 30 mm. With electro-pneumatic control. For open and closed uppers. Eyelet feed, insertion and rivetting. Automatic feed and punching of uppers. With adjustable channel for eyelets with shaft diameter of 4 – 9 mm.
Capacity: approx. 800 pairs / 8 hours
ALBEKO 15VPI
Leistenoberflächen-Kopierapparat mit Vakuumpumpe

Vacuum Forming Machine for Last Shells, With motor driven vacuum pump.

Folien:In der Größe 440 x 240 mm
         In den Stärken 0,5 mm, 1,0 mm, 2,0 mm
Farben: weiß und transparent
For foils 440 x 240 mm, in different thickness of 0,5 / 1,0 / 2,0 mm,
in colour white and transparent.

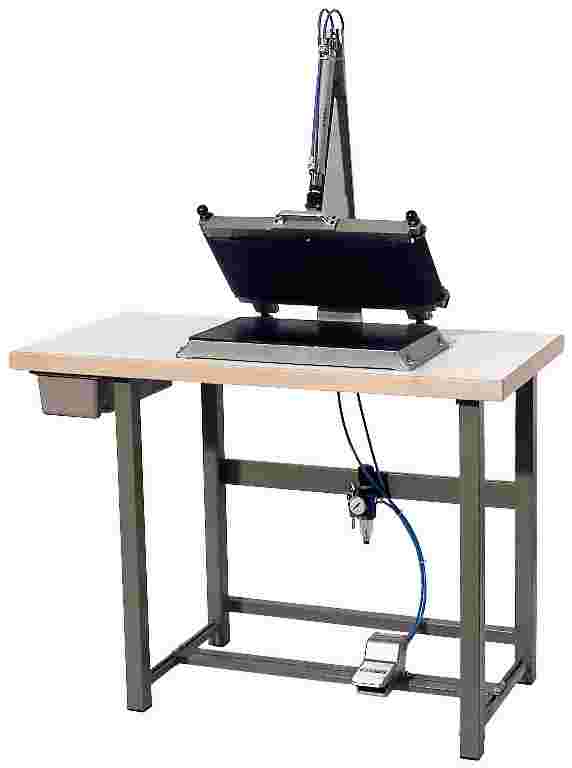

ALBEKO 102BP
Oberleder-Markierapparat mit Druckluftantrieb
Dieser Apparat dient zum Markieren von Nähten oder Perforationen auf Schaftteilen mittels abwischbarer Farbbandmarkierung.

Upper Design Marking Machine, Pneumatic
With ink ribbons. This apparatus serves for marking seams or
perforation designs on upper parts with special ink  which can be
wiped off.
ALBEKO     122CP
Nahtausreib- und Bandauflegmaschine
Seam Rubbing and Taping Machine

Width of tape 16mm.

capacity: 800 pairs daily

BIMA is the supplier of the suitable cold-adhesive-tape!
135P upper lacing machine.jpg
ALBEKO 135P
Automatische Schaftschnürmaschine
Vor dem Zwicken müssen Schnürschuhe mit Garn geschnürt werden. Diese Maschine schnürt 2,3,4 und 5 Ösenreihen, macht einen lösbaren Knoten und schneidet das Garn ab.

Upper Lacing Machine
efficient – reliable – cost-saving. For thread lacing uppers for the lasting operations 2, 3, 4 or 5 pairs of eyelets can be laced and an automatic cutting-off device cuts off the thread after the knotter makes the knot which can be untied with one pull.

Capacity: 1500 pairs daily and more.
ALBEKO 366P,
Lippenbandaufpressmaschine für Rahmenbrandsohlen
Mit elektropneumatischer Steuerung .
Zum Aufpressen von vorzementiertem Lippenband auf vorzementierte
Brandsohlen, mit Abschneidvorrichtung, mit  integrierter Aktivierein-
richtung.
Leistung: 800 Paar täglich
BIMA liefert das geeignete Lippenband (eigene Herstellung)!

ALBEKO 366P, Welt Sole Rib Attaching Machine
With electro-pneumatic control.
For pressing pre-cemented ribs on pre-cemented
Insoles, with cutting-off device, with integrated activating
Device.
Capacity: 800 pairs daily

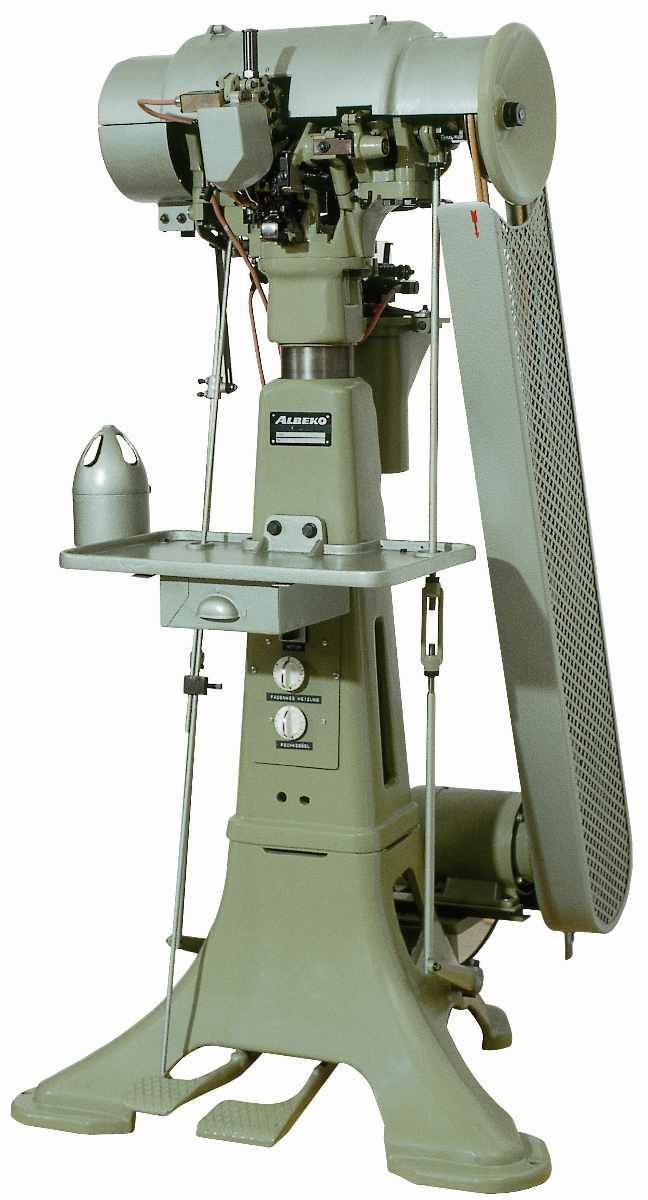

ALBEKO 519ES
Schnellaufende Rahmenmeinstechmaschine. Es lassen sich sowohl leichte und hochgesprengte Damenschuhe , als auch schweres Schuhwerk verarbeiten. Nach dem Nähvorgang kann mit einer Abschneidvorrichtung der Rahmen (Wulst- oder Flachrahmen) abgeschnitten werden.
Leistung: ca. 400 Paar / 8 Std.
BIMA liefert die geeigneten Einstechnadeln und Ahlen!

High Speed Welt Sewing Machine. Light women shoes, also with a high arch, as well as heavy footwear can be processed. After the sewing process, the welt (fancy or flat welt) can be cut off with a cutting device.
Capacity: approx. 400 pairs / 8 hours
BIMA is the supplier of the suitable needles and awls!

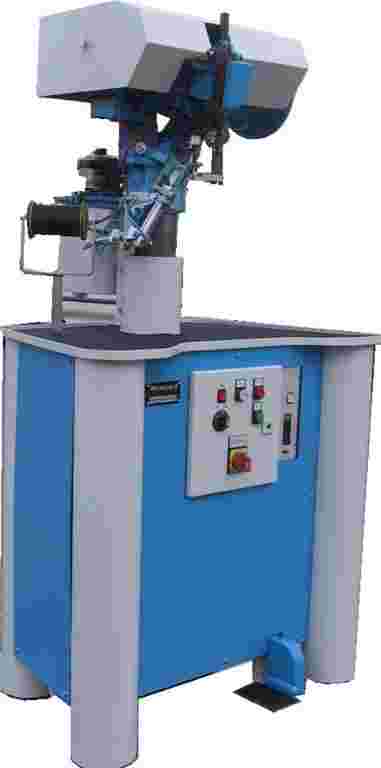

ALBEKO 520ES,
Schnellaufende Rahmeneinstechmaschine
Die Maschine ist mit elektronisch geregelter Antriebs- und Stoppeinrichtung ausgerüstet. Durch Einsatz der Elektronik ist ein stufenlos regelbares Nähen mit maximaler Geschwindigkeit bis zum letzten Stich und optimaler Leistung möglich.  Es lassen sich sowohl leichte und hochgesprengte Damenschuhe, als auch schweres Schuhwerk verarbeiten. Vor Beendigung des Nähvorgangs wird durch Betätigen des Rahmenabschneidhebels der Rahmen automatisch auf exakte Länge geschnitten.
Leistung: 400 Paar / 8 Std.
BIMA liefert die geeigneten Einstechnadeln und Ahlen!

High Speed Welt Sewing Machine
The machine is eqipped with a drive- and stop equipment. By using electronic infinitely sewing with maximum speed up to the last stitch and optimal efficiency is possible. After releasing the foot-pedal the machine comes back to the starting position. Light women shoes, also with a high arch, as well as heavy footwear can be processed. After the sewing process, the welt can be cut off exactly.
Capacity: 400 pairs / 8 hours
Spang & Brands Modell 55AP
Ausgestattet mit dem neuesten und modernsten DC  Elektronikmotor.
Is equipped with the newest and most modern DC Electronic motor.
Rahmeneinstechmaschine für Zwienaht mit großem Nadelkreis 60mm, mit Rahmenführung und  pneumatischer Rahmenabschneidvorrichtung.
Welt sewer for Inverted Shoes, with overlarge needle radius 60mm, with welt guide and pneumatic welt cutting-off device.

Optional:
Rahmeneinstechmaschine für Goodyear mit normalem Nadelkreis 50mm, mit Rahmenführung und pneumatischer Rahmenabschneidvorrichtung.

Welt sewer for Goodyear Shoes, with normal needle radius 50mm, with welt guide and pneumatic cutting-off device
Technische Daten:/Technical Data
Platzbedarf/ Floor space90 x 110 x 190 cm
Gewicht/ Weight:450kg
Umdrehungen/RPM300 U/min
Drehmoment/torque56Nm
Tagesleistung/ Daily output350 – 500 Paar

Further machine types upon request
Since the takeover of the famous ALBEKO Schuhmaschinengesellschaft in the year 1993 and  of the equally renowned brands Linham, Hanke, Hohner, Spang&Brands, Mönus and Adrian&Busch, we offer the right machine for streamlined production at every workplace
in the shoe and leather goods industry.


The range extends from machines for the model department, assembling, bottom fixing to
finishing machines.

Furthermore we offer one of the best, complete machine sets for production of welt-sewn shoes.
